Surface Area

Surface area is the total amount of space covering the outside of a 3D object.

Think of it like wrapping a present 🎁. The amount of wrapping paper you need to cover the entire box is its surface area.

👉 Surface area = add up the areas of all the outside faces/surfaces.

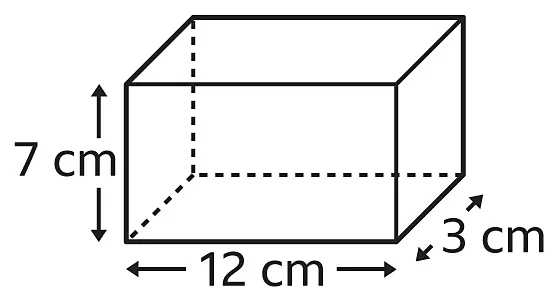

Top: 12 x 3 =36
Bottom: 12 x 3 = 36
left side: 7 x 3 = 21
right sde: 7 x 3 = 21
front: 12 x 7 = 84
back 12 x 7 = 84

36 + 36 + 21 + 21 + 84 + 84 = 282 cm2

Surface Area

1 / 7

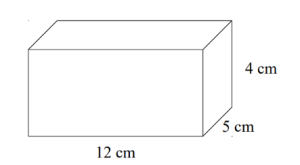

The diagram shows a cuboid.
Find the total surface area of the cuboid.

2 / 7

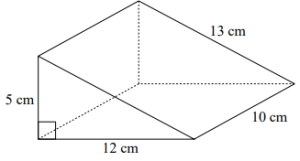

The diagram shows a triangular prism.
Find the total surface area of the triangular prism.

3 / 7

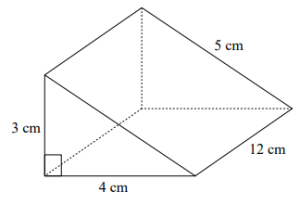

The diagram shows a triangular prism.
Find the total surface area of the triangular prism.

4 / 7

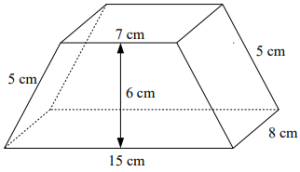

The diagram shows a prism.
The cross section of the prism is in the shape of
a trapezium.
Calculate the total surface area of the prism.

5 / 7

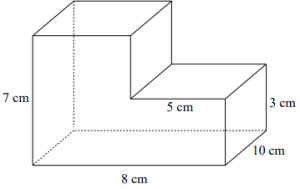

The diagram shows a prism.
Calculate the total surface area of the prism.

6 / 7

The diagram shows a box.
5 of these boxes are going to be painted.
Each pot of paint can cover 6m².
How many pots of paint are needed to paint the 5 boxes?

7 / 7

The diagram shows a cylindrical tank.
The tank has a top and a bottom.
4 of these tanks are going to be painted.
Each tank has a diameter of 50 cm and a height of 1.5 m.
Each pot of paint can cover 4m².
How many pots of paint are needed to paint the 4 tanks?

Your score is

The average score is 0%
